Equation of a Sphere

$\begin{tikzpicture} % MERC %% some definitions \def\R{3} % sphere radius \def\angEl{25} % elevation angle \def\angAz{-100} % azimuth angle \def\angPhiOne{-50} % longitude of point P \def\angPhiTwo{-35} % longitude of point Q \def\angBeta{33} % latitude of point P and Q %% working planes \pgfmathsetmacro\H{\R*cos(\angEl)} % distance to north pole \LongitudePlane[xzplane]{\angEl}{\angAz} \LongitudePlane[pzplane]{\angEl}{\angPhiOne} \LongitudePlane[qzplane]{\angEl}{\angPhiTwo} \LatitudePlane[equator]{\angEl}{0} %% draw background sphere \fill[ball color=grey!10] (0,0) circle (\R); % 3D lighting effect %% characteristic points \path[pzplane] (\angBeta:\R) coordinate [label={[black]above left:$P$}] (P); \drawpoint{P}{.5mm}{black}; \coordinate [label={[black]above left:$O$}] (O) at (0,0); \drawpoint{O}{.5mm}{black}; \path[pzplane] (\R,0) coordinate (PE); \path[xzplane] (\R,0) coordinate (XE); \path[pzplane] (\R,0) coordinate [label={[black]above right:$R$}] (R); \drawpoint{R}{.5mm}{black}; \draw[dotted,black] (O) -- (R); \drawbrace{O}{R}{2mm}{black}{$r$}{0}{-4mm}{mirror}; %% meridians and latitude circles \DrawLatitudeCircle[\R]{0} % equator %% draw lines and put labels %\draw (-\R,-\H) -- (-\R,2*\R) (\R,-\H) -- (\R,2*\R); \draw[->] (O) -- (P); % z axis \draw[->,dashed,blue] (O) -- +(0,1.5*\R) node[above] {$z$}; % x axis \path[xzplane] (0:\R) node[below,red] {$x$} coordinate (x); \draw[->,dashed,red] (O) -- (x); % y axis \path[pyplane] (0:\R) node[left,green!50] {$y$} coordinate (y); \draw[->,dashed,green!50] (O) -- (y); % projection P \path[pzplane] (0.8*\R,0) coordinate [label={[black]above right:$Q$}] (Q); \drawpoint{Q}{.5mm}{black}; \draw[->,dotted] (P) -- (Q); %angles \draw[pzplane,->,thin] (0:0.5*\R) to[bend right=15] node[midway,right] {$\alpha$} (\angBeta:0.5*\R); \draw[equator,->,thin] (\angAz:0.5*\R) to[bend right=30] node[pos=0.4,below] {$\beta$} (\angPhiOne:0.5*\R); \end{tikzpicture}$

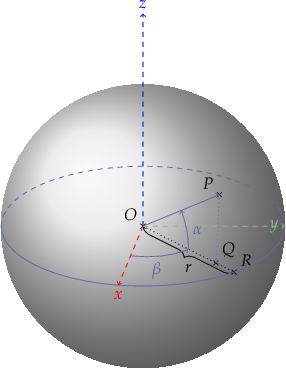

The segment $\overline{OQ}$ is created b the projection of P on $\overline{OQ}$ and is also the bisection of the rectangle described by $\overline{O,y-axis,x-axis,Q}$ . $\overline{Q,x-axis}$ is a perpendicular projection on the x-axis and $\overline{Q,y-axis}$ is a perpendicular projection on the $y$ -axis.

In the triangle between $\overline{OQ}$ and the x-axis:

$\begin{eqnarray*} \cos(\beta) &=& \frac{x}{\overline{OQ}} \end{eqnarray*}$

In the triangle between $\overline{OQ}$ and the y-axis:

$\begin{eqnarray*} \sin(\beta) &=& \frac{y}{\overline{OQ}} \end{eqnarray*}$

In the triangle given by $\widehat{OPQ}$ :

$\begin{eqnarray*} \cos{\alpha} &=& \frac{\overline{OQ}}{\overline{OP}} = \frac{OQ}{r} \end{eqnarray*}$

Now, we take the last equation:

$\begin{eqnarray*} \cos{\alpha} &=& \frac{\overline{OQ}}{r} \end{aleqnarray*} and take out $\overline{OQ}$: \begin{eqnarray*} OQ &=& r * \cos{\alpha} \end{eqnarray*}$

and substitute $\overline{OQ}$ in the first two equations:

$\begin{eqnarray*} \cos{\beta} &=& \frac{x}{r * \cos{\alpha}} \\ \sin{\beta} &=& \frac{y}{r * \cos{\alpha}} \end{eqnarray*}$

we extract x and y since it is what we are looking for:

$\begin{eqnarray*} x &=& r * \cos{\alpha} * \cos{\beta} \\ y &=& r * \cos{\alpha} * \sin{\beta} \end{eqnarray*}$

we also need z, so we go back to the triangle $\widehat{OPQ}$ :

$\begin{eqnarray*} \sin{\alpha} &=& \frac{\overline{PQ}}{\overline{OP}} = \frac{z}{r} \end{eqnarray*}$

so we extract z:

$\begin{eqnarray*} z &=& r * \sin{\alpha} \end{eqnarray*}$

Now, concluding, we obtain:

$\begin{eqnarray*} x &=& r * \cos{\alpha} * \cos{\beta} & \\ y &=& r * \cos{\alpha} * \sin{\beta} & \\ z &=& r * \sin{\alpha} \end{eqnarray*}$

which is the parametric form of the equation of a sphere in space. If you follow what we did, we really did the same thing that we did for a sphere, but we just did it several times in order to obtain z as well.

Volume of a Sphere

$\begin{tikzpicture} %% some definitions \def\R{3} % sphere radius \def\angEl{25} % elevation angle \def\angAz{-100} % azimuth angle \def\angPhiOne{-50} % longitude of point P \def\angPhiTwo{-35} % longitude of point Q \def\angBeta{33} % latitude of point P and Q %% working planes \pgfmathsetmacro\H{\R*cos(\angEl)} % distance to north pole \LongitudePlane[xzplane]{\angEl}{\angAz} \LongitudePlane[pzplane]{\angEl}{\angPhiOne} \LongitudePlane[qzplane]{\angEl}{\angPhiTwo} \LatitudePlane[equator]{\angEl}{0} %% draw background sphere \fill[ball color=grey!10] (0,0) circle (\R); % 3D lighting effect % circles \foreach \t in {-80,-60,...,80} { \DrawLatitudeCircle[\R]{\t} } %\foreach \t in {-5,-35,...,-175} { \DrawLongitudeCircle[\R]{\t} } % z axis \draw[->,dashed,blue] (O) -- +(0,\R) node[above] {$z$} coordinate (z); % x axis \path[xzplane] (0:\R) node[below,red] {$x$} coordinate (x); \draw[->,dashed,red] (O) -- (x); % y axis \path[pyplane] (0:\R) node[left,green!50] {$y$} coordinate (y); \draw[->,dashed,green!50] (O) -- (y); % Ox %\drawbrace{O}{x}{2mm}{black}{$r$}{4mm}{0}{}; % Oy %\drawbrace{O}{y}{2mm}{black}{$r$}{0}{4mm}{}; % Oz %\drawbrace{O}{z}{2mm}{black}{$r$}{-4mm}{0}{}; % right-angle %\node[square,minimum size=1mm, dotted] at (0.1,0.1) [draw,fill] (O) [magenta] {}; %\coordinate[label={[magenta]above right:$90^{\circ}$}] (90) at (0.2, 0.2); \coordinate [label={[black]left:$O$}] (O) at (0,0); \drawpoint{O}{.5mm}{black}; \path[pzplane] (\angBeta:\R) coordinate [label={[black]right:$P$}] (P); \drawpoint{P}{.5mm}{black}; \draw[->,black] (O) -- (P); \drawbrace{O}{P}{2mm}{black}{$r$}{0}{-4mm}{mirror}; \coordinate [label={[black]left:$Q$}] (Q) at (0,0.5*\R); \drawpoint{Q}{.5mm}{black}; \draw[dotted] (P) -- (Q); \end{tikzpicture}$

A sphere can be seen as infinitely many disks placed on top of each other, each representing the cross-section of the sphere at a certain point along the $z$ axis.

This means that we can represent the difference in volume as a summation of all the surfaces of the circles (each having the area $A_{\bullet}=\pi * r^{2}$ ) aligned along the $z$ axis and write that:

$\begin{eqnarray*} V &\approx& \sum{A_{\bullet}^{\infty}*\delta{z}} \end{eqnarray*}$

if we apply this to the whole range on the $z$ axis while sweeping the dimension of the circles starting at the south and up to the north pole, in both cases where $y=0$ . This makes the radius range from $-r$ at the south pole to $r$ at the north pole and the equation becomes:

$\begin{eqnarray*} V &=& \int_{-r}^{r}{\pi*y^{2}*dz} \end{eqnarray*}$

At any given $z$ , a right-angle triangle is formed by (for example) $\widehat{O,P,Q}$ in which we can apply Pythagoras. This translates to an universal right-angle triangle in point $Q$ so that at any value of $z$ we can map:

$\begin{eqnarray*} \overline{OQ} &\mapsto& z \\ \overline{OP} &\mapsto& r \\ \overline{QP} &\mapsto& y \\ \end{eqnarray*}$

and leading to Pythagoras:

$\begin{eqnarray*} \overbar{y}^{2}&=&r^{2}-z^{2} \end{eqnarray*}$

Now we can replace $y^{2}$ in the integral equation and obtain:

$\begin{eqnarray*} V &=& \int_{-r}^{r}{\pi*(r^{2}-z^{2})*dz} \end{eqnarray*}$

we can take out the constant $\pi$ and rewrite the integral as:

$\begin{eqnarray*} V &=& \pi*\int_{-r}^{r}{(r^{2}-z^{2})*dz} \end{eqnarray*}$

and expand using definite integral rules to:

$\begin{eqnarray*} V &=& \pi*[\int_{-r}^{0}{r^{2}dz} - \int_{0}^{r}{z^{2}*dz}] & \\ &=& \pi*[ r^{2}z\biggr\rvert_{-r}^{0} - \frac{1}{3}z^{3}\biggr\rvert_{0}^{-r} ] & \\ &=& \pi*\{ (r^{2}*0) - (r^{2}*-r) - [ \frac{1}{3}(-r)^{3} - \frac{1}{3}(0)^{3} ]\} & \\ &=& \pi*( r^{3} + \frac{1}{3}*r^{3} ) & \\ &=& \pi*( \frac{3*r^{3} + r^{3}}{3} ) & \\ &=& \pi*( \frac{4*r^{3}}{3} ) \end{eqnarray*}$

and rearranging the terms nicely, we obtain the volume as:

$\begin{eqnarray*} V &=& \frac{4}{3}\pi*r^{3} \end{eqnarray*}$

Area of a Sphere

$\begin{tikzpicture} %% some definitions \def\R{3} % sphere radius \def\angEl{25} % elevation angle \def\angAz{-100} % azimuth angle \def\angPhiOne{-50} % longitude of point P \def\angPhiTwo{-35} % longitude of point Q \def\angBeta{33} % latitude of point P and Q %% working planes \pgfmathsetmacro\H{\R*cos(\angEl)} % distance to north pole \LongitudePlane[xzplane]{\angEl}{\angAz} \LongitudePlane[pzplane]{\angEl}{\angPhiOne} \LongitudePlane[qzplane]{\angEl}{\angPhiTwo} \LatitudePlane[equator]{\angEl}{0} %% draw background sphere \fill[ball color=gray!10] (0,0) circle (\R); % 3D lighting effect \fill[ball color=gray!75] (0,0) circle (0.75*\R); % 3D lighting effect % circles %\foreach \t in {-80,-60,...,80} { \DrawLatitudeCircle[\R]{\t} } % z axis \draw[->,dashed,blue] (O) -- +(0,\R) node[above] {$z$} coordinate (z); % x axis \path[xzplane] (0:\R) node[below,red] {$x$} coordinate (x); \draw[->,dashed,red] (O) -- (x); % y axis \path[pyplane] (0:\R) node[left,green!50] {$y$} coordinate (y); \draw[->,dashed,green!50] (O) -- (y); % Ox %\drawbrace{O}{x}{2mm}{black}{$r$}{4mm}{0}{}; % Oy %\drawbrace{O}{y}{2mm}{black}{$r$}{0}{4mm}{}; % Oz %\drawbrace{O}{z}{2mm}{black}{$r$}{-4mm}{0}{}; % right-angle %\node[square,minimum size=1mm, dotted] at (0.1,0.1) [draw,fill] (O) [magenta] {}; %\coordinate[label={[magenta]above right:$90^{\circ}$}] (90) at (0.2, 0.2); \coordinate [label={[black]left:$O$}] (O) at (0,0); \drawpoint{O}{.5mm}{black}; \path[pzplane] (\angBeta:\R) coordinate [label={[black]right:$P$}] (P); \drawpoint{P}{.5mm}{black}; \draw[->,black] (O) -- (P); \drawbrace{O}{P}{2mm}{black}{$r$}{0}{-4mm}{mirror}; \coordinate [label={[black]left:$Q$}] (Q) at (0,0.5*\R); \drawpoint{Q}{.5mm}{black}; \draw[dotted] (P) -- (Q); \end{tikzpicture}$

The total volume inside a sphere of radius $r$ can be thought of as the summation of the surface area $A(r)$ of an infinite number of spherical shells of infinitesimal thickness concentrically stacked inside one another from radius $0$ to radius $r$ .

At any given radius $r$ the incremental volume $\delta V$ equals the product of the surface area at radius $r(A(r))$ and the thickness of the shell $\delta r$ .

Thus, we can write that:

$\begin{eqnarray*} V &\approx& \sum{A(r)}\delta r \end{eqnarray*}$

as $\delta r$ approaches zero, we can integrate from $0$ to $r$ (all the internal shells, from radius zero to the radius of the big sphere).

$\begin{eqnarray*} V &=& \int_{0}^{r}A(r)dr \end{eqnarray*}$

We have already derived the volume, so we can now substitute the volume into the equation and rewrite:

$\begin{eqnarray*} \frac{4}{3}\pi*r^{3} &=& \int_{0}^{r}A(r)dr \end{eqnarray*}$

Now we differentiate both sides of the equation with respect to $r$ in order to get rid of the integral and derive the area $A$ as a function of the radius $r$ :

$\begin{eqnarray*} \frac{d}{dr}\biggr{[}\frac{4}{3}\pi*r^{3}\biggr{]} &=& \frac{d}{dr}\biggr{[}\int_{0}^{r}A(r)dr\biggr{]} \end{eqnarray*}$

Differentiating on the left side, we obtain:

$\begin{eqnarray*} \frac{4}{3}\pi*3*r^{2} &=& \frac{d}{dr}\biggr{[}\int_{0}^{r}A(r)dr\biggr{]} \end{eqnarray*}$

while differentiating on the right side, the defined integral from $0$ to $r$ does not matter, we just use the differentiation integral rule:

$\begin{eqnarray*} \frac{d}{d{\bf{x}}}\biggr{[}\int {\bf{x}}d{\bf{x}}\biggr{]} &=& {\bf{x}} \end{eqnarray*}$

and obtain:

$\begin{eqnarray*} \frac{4}{3}\pi*3*r^{2} &=& A(r) \end{eqnarray*}$

Finally, simplifying on the left side:

$\begin{eqnarray*} 4\pi r^{2} &=& A(r) \end{eqnarray*}$

and turning the equality around so it looks like a forumula, yields the area of the sphere:

$\begin{eqnarray*} A(r) &=& 4\pi r^{2} \end{eqnarray*}$

Since we already know that the area is a function of $r$ , we can abbreviate this to:

$\begin{eqnarray*} A &=& 4\pi r^{2} \end{eqnarray*}$

and obtain the final area of the large sphere.
