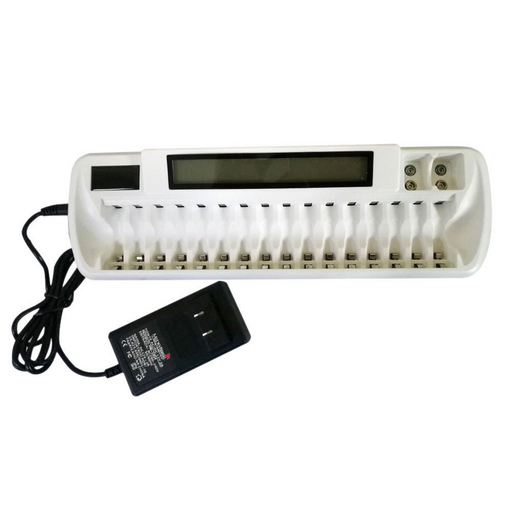

The GPISEN smart battery charger is a 16+2 gang battery charger that features a large backlit LCD display and supports charging alkaline and lithium based batteries via trickle charging.

• Input characteristics:
  • Input Interface: 5.5mm / 2.0mm DC Block
  • Input voltage range: DC 11.5-12.5V
  • Input current: rated working current ≤2.0A
• No-load current ≤ 60mA Output characteristics:
• DC NiMH AA (or AAA) 500 ± 50mA (or 250 ± 25mA) × 16PCS
• DC laminated battery 100 ± 10mA × 2PCS
• CE and ROHS certification
• TN large LCD screen.
• Up to 16PCS AA / AAA and 2PCS Stacked (9V) Batteries Independently Controlled Charges.
• Not rechargeable battery test.
• 0 voltage repair.
• High-precision detection, 12 AD, -dv, 0dv, the highest voltage and high sensitivity of intelligent temperature sensor detection.
• Reverse connection protection.
• As low as 220uA reverse current.
• 8 hours time limit.
• High efficiency charging circuit green.
