First, add the table to /etc/iproute2/rt_tables:

501     output

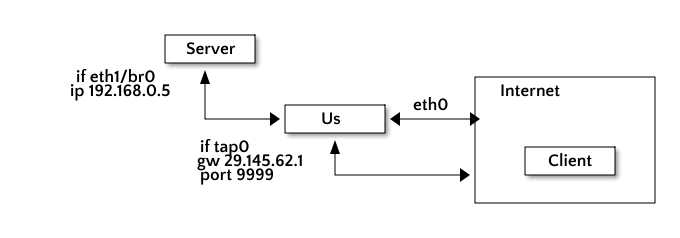

Set the default route of the table output to go out through tap0 and make a rule such that all packets with mark 501 will use that route in the table output:

ip route add default via 29.145.62.1 dev tap0 table output
ip rule add fwmark 501 lookup output
ip route flush cache

Mark all outgoing packets from port 9999 with mark 501 and NAT them to the local IP:

iptables -t mangle -A PREROUTING -s 192.168.0.5 -p tcp --sport 9999 -j MARK --set-mark 501
iptables -t nat -A PREROUTING -i tap0 -p tcp --dport 9999 -j DNAT --to 192.168.0.5
# This is not needed if you masquerade:
iptables -t nat -A POSTROUTING -o tap0 -j SNAT --to 29.145.62.1

TSO is meant for high-bandwidth networks and offloads the CPU workload by queueing up buffers and letting the network card split them into packets.

TSO can be enabled for a network card using:

ethtool -K eth0 tso on

and on Debian it can be enabled by editing /etc/network/interfaces:

# The primary network interface
allow-hotplug eth0
iface eth0 inet dhcp
        up sleep 5; ethtool -K eth0 tso on

• Go to My Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters.
• Create a DWORD named DisableLargeSendOffload.
• Set the value to 0.
• Reboot.

In simple terms, this reduces latency by allowing more packets to be sent during a TCP handshake. The initial congestion window size can be tuned when the interface goes up by creating a file in /etc/networking/if-up/ named iniconwin containing the following:

#!/bin/sh -e
##########################################################
##   (C) Wizardry and Steamworks 2014, license: GPLv3   ##
##########################################################

# Do not bother to do anything if the interface does not
# correspond to the interface for the default route.
if [ "$IFACE" != eth0 ]; then
	exit 0
fi

ip route change $(ip route show | grep '^default' | sed 's/initcwnd [0-9]+//' | sed 's/initrwnd [0-9]+//' ) initcwnd 12 initrwnd 12

The script assumes that the default interface is eth0 and the script will have to be adapted by changing eth0 to the default interface.

Assuming that you have wondershaper installed and configured, the following TOS rules using iptables will help you prioritize traffic:

## ToS
for table in OUTPUT PREROUTING; do
	# HTTP / HTTPS
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --dport 80 -j TOS --set-tos Maximize-Throughput
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --sport 80 -j TOS --set-tos Maximize-Throughput
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --dport 443 -j TOS --set-tos Maximize-Throughput
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --sport 443 -j TOS --set-tos Maximize-Throughput
	# DNS
	iptables -t mangle -A $table -p udp -m state --state NEW,ESTABLISHED,RELATED --dport 53 -j TOS --set-tos Minimize-Delay
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --sport 53 -j TOS --set-tos Minimize-Delay
	# SSH
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --dport 22 -j TOS --set-tos Minimize-Delay
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --sport 22 -j TOS --set-tos Minimize-Delay
	# Samba
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --dport 137 -j TOS --set-tos Maximize-Throughput
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --sport 138 -j TOS --set-tos Maximize-Throughput
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --dport 139 -j TOS --set-tos Maximize-Throughput
	iptables -t mangle -A $table -p tcp -m state --state NEW,ESTABLISHED,RELATED --sport 445 -j TOS --set-tos Maximize-Throughput
done

sysctl net.ipv4.tcp_available_congestion_control

The following formula can be used to calculate the txqueue size using the BDP rule:

where:

• is the downlink speed in bits (from the gateway).
• is the delay in seconds (measured to the gateway using ping).
• is the packet size in bytes (usually 1500 MTU).

The result can then be set under Linux with:

ifconfig <interface> txqueuelen <value>

Cnvert the IP and the netmask to a binary representation. For example, for the IP address 192.168.1.101 we obtain 11000000 10101000 00000001 01100101 and for the netmask 255.255.255.224 we obtain 11111111 11111111 11111111 11100000 (the netmask must be a sequential series of 1s without any 0 gaps between the 1s).

In order to obtain the first address, take the binary representation of the IP and AND it with the netmask:

11000000 10101000 00000001 01100101 (IP)
11111111 11111111 11111111 11100000 (Netmask)
----------------------------------- AND
11000000 10101000 00000001 01100000 = 192.168.1.96 (first network address)

Then take the netmask and invert the bits (NOT) which will give you the size of the range:

11111111 11111111 11111111 11100000 (Netmask)
----------------------------------- NOT
00000000 00000000 00000000 00011111 = 31 addresses

Finally, the range for the IP address 192.168.1.101 with subnet mask 255.255.255.224 is 31 addresses starting from 192.168.1.96 which gives the range: 192.168.1.96-192.168.1.127.127.

On Linux you can get the ring parameters with ethtool. For example, for the eth0 interface:

ethtool -g eth0

which lists the pre-set maximums and the current settings:

Ring parameters for eth0:
Pre-set maximums:
RX:		1024
RX Mini:	255
RX Jumbo:	255
TX:		1024
Current hardware settings:
RX:		512
RX Mini:	0
RX Jumbo:	128
TX:		512

You might observe that the pre-set maximums may not match the current settings, so they can be set using ethtool:

ethtool -G eth0 rx 1024 rx-mini 255 rx-jumbo 255 tx 1024

This can be made permanent on distribution such as Debian by editing /etc/network/interfaces:

allow-hotplug eth0
iface eth0 inet static
        up sleep 5; /sbin/ethtool -G eth0 rx 1024 rx-mini 255 rx-jumbo 255 tx 1024

and adding the up directive which applies the setting on boot.

The following command can be used to connect to any host and port by using /dev/tcp:

exec 7<>/dev/tcp/www.bing.com/80; cat <&7 & cat >&7; exec 7>&-

where:

• www.bing.com is the hostname to connect to
• 80 is the destination port

The command uses exec to set up a redirect to file descriptor 7 (can be any number), after which a redirect is launched from file descriptor 7 to STDOUT and sent into the background (which causes the PID to be displayed) and then redirect STDIN to the same descriptor with the second cat. Finally, when cat terminates (the connection is closed), the file descriptor is cleaned-up with exec.

QUIC is a protocol that uses UDP instead of TCP to serve content, working on port 80 and 443 and used widely by Google, Youtube, etc… Unfortunately, UDP reveals the connecting address since it bypasses HTTP entirely. In order to disable QUIC you can add the following rules to your firewall:

iptables -A FORWARD -i br0 -p udp -m udp --dport 80 -j REJECT --reject-with icmp-port-unreachable
iptables -A FORWARD -i br0 -p udp -m udp --dport 443 -j REJECT --reject-with icmp-port-unreachable
iptables -A FORWARD -s 192.168.1.0/24 ! -d 192.168.1.1 -p tcp -m tcp --dport 80 -m state --state RELATED,ESTABLISHED -j DROP
iptables -A FORWARD -s 192.168.1.0/24 ! -d 192.168.1.1 -p tcp -m tcp --dport 443 -m state --state RELATED,ESTABLISHED -j DROP

where:

• 192.168.1.0/24 is the network subnet.
• 192.168.1.1 is the gateway.

Additionally, you can have squid block alternate protocols by adding the following line:

# Disable alternate protocols
request_header_access Alternate-Protocol deny all
reply_header_access Alternate-Protocol deny all

to the squid configuration file.

squid will broadcast ICP requests and in order to disable them, edit the squid configuration file and add:

# disable ICP
icp_port 0
icp_access deny all
# plug ICP leaks
reply_header_access X-Cache-Lookup deny !localnets
reply_header_access X-Squid-Error deny !localnets
reply_header_access X-Cache deny !localnets

where localness is an ACL defined in your configuration file that should point to the local network.

Using portquiz a trick is to get nmap to connect to portquiz.net on a port range:

nmap portquiz.net -p 1024-65535 -Pn --reason

where:

• -p 1024-65535 is the port range between 1024 and 65535
• -Pn tells nmap not to ping and just to connect
• –reason will make nmap explain why a port was considered closed

Either starting from a hostname, for instance tb1060.lon.100tb.com by issuing:

nslookup tb1060.lon.100tb.com

to determine the IP address, or from the IP address itself (in this case, 146.185.28.59), RADb can be used to determine an ISP's address block.

First, lookup the IP itself to determine which ISP it belongs to:

whois 146.185.28.59

Then, lookup the Autonomous System (AS) number (an ISP identifier code, if you will) of that ISP:

whois -h whois.radb.net 146.185.28.59 | grep ^origin

which should output:

origin:          AS29302

There may be more AS numbers for small internet providers that are, in turn, customers of a larger network.

To make sure that the IP you are after is part of the AS, lookup the AS itself:

whois AS29302

and make sure that the ISP is listed.

The final step is to get all known routes for the AS:

whois -h whois.radb.net -- -i origin -T route AS29302 | grep ^route | awk '{ print $2 }'

which should output all IPv4 address blocks allocated to that ISP line-by-line (easy to automate):

146.185.16.0/20

IPv6 can also be queried in the same way:

whois -h whois.radb.net -- -i origin -T route6 AS29302 | grep ^route | awk '{ print $2 }'

and will yield similar results:

2a01:5a80::/32
